skylights
skylights.
Multiple rows of skylight modules that can be combined to create a large glass roof.
- Flat roof
- Flat roofing material
- Roof opening extra large
- Roof light installation pitch 5-40°
Ideal for construction of large, glazed roofs Easy, fast and secure installation Great design flexibility.

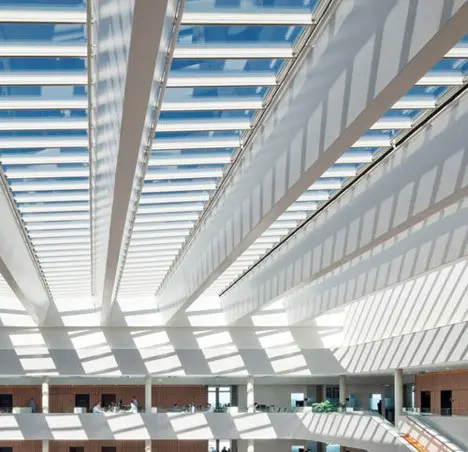

Alfanar Aluminum modular Long light and Ridge light solutions enable great daylight design in buildings with large, open atriums.
The modular skylights enable fast and intuitive design when multiple rows are simply put together to cover the atrium – big or small.
For maximum daylight, we recommend either mono-pitched Long lights installed at low angle or Ridge lights at 5° with beams.
For optimum thermal comfort, we recommend Ridge lights 25-40° with venting modules.

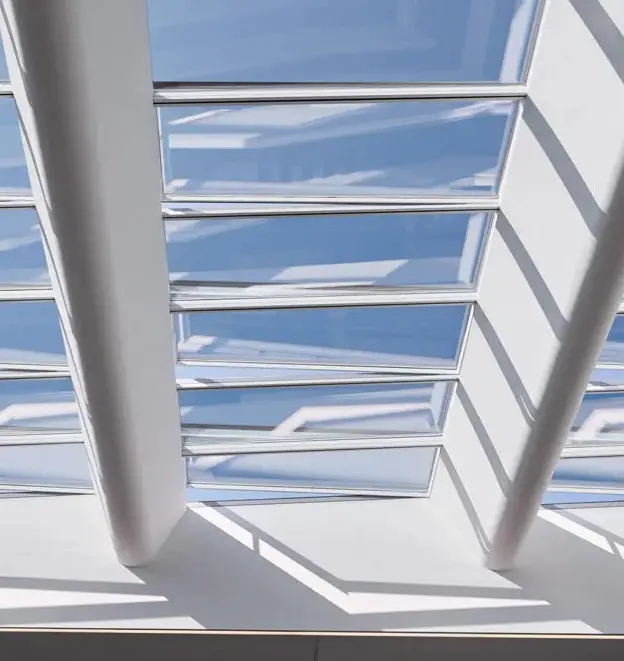

The roof lights are connected via drainage gutters and supported by structural beams.
The beams also serve as support for the sub-construction used for mounting the skylight modules.
Alfanar Aluminum modular skylights are delivered with a 10-year guarantee on modules and flashings.
Alfanar Aluminum skylight specialists offer support throughout design, specification and installation, including design of structural beams and drainage gutters.
Please note that beams, drainage gutters and sub-constructions are not included in the Alfanar Aluminum delivery & Installation.
Alfanar Aluminum modular skylights require the following minimum and maximum measurements:
Module width: 675-1000 mm
Module height: 600-3000 mm
Comfort venting Modular Skylights meet the requirements of the harmonized standard.
Therefore, comfort venting skylights can be installed within reach, i.e. at installation heights below 2.5 m above floor level (inside) and ground level (outside).
